The TONDAR NIROU Company

 provides a variety of  selling in soft starter and drives and engineering services including installing soft starters and drives and implementing various industrial projects and troubleshooting specialized electronic devices

VLT® AQUA Drive FC 202

The VLT® AQUA Drive is designed to provide the highest level of performance of AC-motor-driven water and wastewater applications. Featuring a wide range of powerful standard features, which can be expanded with performance-improving options, the drive is equally suited to both new and retrofit projects.



The considerable daily load variation in water or wastewater treatment plants makes it economically feasible to introduce motor control on rotating equipment such as pumps and blowers. The new generation VLT AQUA Drive can realistically offer first-year cost savings of between 10–30% compared to traditional drive solutions. Its high lifetime availability and low energy consumption and maintenance costs provide you with the lowest cost of ownership.



The quick and user-friendly setup of water and pump settings reduces installation time ensuring a fast route to maximum energy efficiency and motor control. By collecting the most important parameters in one place, the risk of incorrect configuration is reduced significantly.



Supply voltages and power range



1 x 200-240 V...1.1-22 kW

1 x 380-480 V...7.5-37 kW

3 x 200-240 V...0.25-45 kW

3 x 380-480 V...0.37 kW – 1 MW

3 x 525-600 V...0.75-90 kW

3 x 525-690 V...1.1 kW – 1.4 MW

Low harmonic drive



3 x 380-480 V...132-450 kW

12-pulse drive



3 x 380-500...250-1000 kW

3 x 525-690...250-1400 kW

Features and benefits

Assets are protected thanks to specially designed software that prevents, for example, water hammering



Energy efficiency is maximized as a result of the drives control algorithms and design which focus on reducing heat loss



High energy savings related to air conditioning are ensured due to the unique back-channel-cooling concept that transfers 90% of heat away from the room



Electromagnetic interference and harmonic distortion are reduced thanks to the built-in, scalable RFI filter and integrated DC link chokes



Perfect system integration and adaptation to the application are possible due to freely programmable warnings and alerts



3–8% energy savings are achieved as a result of Automatic Energy Optimization





VLT® AutomationDrive FC(301/ 302)

VLT® AutomationDrive is a modular drive that's easy to configure, features a broad power range, and is designed to comply with all modern automation application requirements.



Product details

Communications functionality integrated Modbus RTU

Communications functionality Optional PROFIBUS DP V1

PROFINET

Powerlink

DeviceNet

CANopen

Modbus TCP

EtherNet/IP

EtherCAT

IP protection class IP20

IP00

IP protection class (UL-Type) IP21/Type 1

IP55/Type 12

IP54/type 12

IP66/Type 4X

Other features Low harmonic drive

12 pulse drive

Power Range for 3 phase; 380-500V [kW] 0.37-1100

Power range for 3 phase; 200-240V (kW) 0.25-37

Power Range for 3 phases; 525-600 V [HP] 0.75-75

Power Range for 3 phases; 525-690 V [kW] 1.1-1400

RFI filter C1

C2

C3

Type VLT® AutomationDrive FC 302

Communications functionality integrated Modbus RTU

Communications functionality Optional PROFIBUS DP V1

PROFINET

Powerlink

DeviceNet

CANopen

Modbus TCP

EtherNet/IP

EtherCAT

IP protection class IP20

IP00

IP protection class (UL-Type) IP21/Type 1

IP55/Type 12

IP54/type 12

IP66/Type 4X

Other features Low harmonic drive

12 pulse drive

Power Range for 3 phase; 380-500V [kW] 0.37-1100

Power range for 3 phase; 200-240V (kW) 0.25-37

Power Range for 3 phases; 525-600 V [HP] 0.75-75

Power Range for 3 phases; 525-690 V [kW] 1.1-1400

RFI filter C1

C2

C3

Type VLT® AutomationDrive FC 302

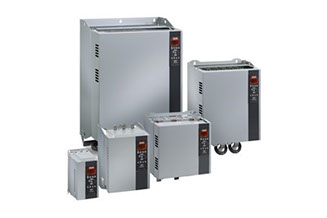

(MCD500)



Effectively protect motors while saving energy

A comprehensive solution for soft starting and stopping of three-phase asynchronous motors that increases uptime and reduces maintenance requirements.

By integrating soft starters with AC motors, you can save energy, space and costs and increase the lifetime of your system by reducing wear on motors, power cables and the electrical distribution system. And there is no need to consider filters and screened cables, as soft starters generate zero harmonics.

















Supply voltages and power range

• 3 x 200-690 V...7.5-850/2400* kW (1600 A)

*Inside delta connection

• 24 V DC or 110-240 V AC

Features and benefits

Easy connectivity for the soft starter to EtherNet/IP-based networks, such as Rockwell PLC systems

Programming is quick and easy thanks to three menu systems (Quick Menu, Application Setup and Main Menu), a four-line graphical display and a logic keypad

The best starting and stopping profile for the application is chosen using Adaptive Acceleration Control

Motors can be used to their full potential without risk of damage from overloading due to second-order thermal model

Installation costs are lower and there is less stress on the motor thanks to DC injection braking distributed evenly over three phases

Space can be saved, cabling costs reduced and retrofitting made easier as a result of adjustable bus bars which allow for both top and bottom entry





Please contact us for ordering and other services by phone or the company's e-mail

Phone: (+98)-2634644769

Telegram: (+98)-9381869682

E-mail: info@tondarnirou.com
