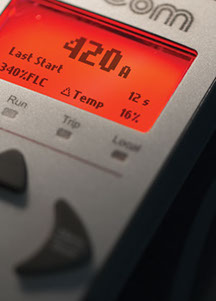

EMX4(NEW)



Features

Motor Control

• Two motor sets

• Constant current & current ramp start

• Adaptive control starting/stopping

• Kickstart

• Coast to stop and TVR stop

• DC brake

• Soft brake

• Jog (forward and reverse)

• Inside delta (6 wire) control

• Soft trip



Protection

• Motor thermistor

• Current imbalance

• Under/Overcurrent

• Phase sequence

• Phase loss

• Power loss

Integration and Management

• Multi-language graphical display

• I/O and network expansion options

• USB port and data logging

• Analog output

• Emergency run

• SCR fail PowerThrough operation

• Daily on/off scheduling

Accessories

Communications options

• Modbus RTU

• Profibus

• DeviceNet

• Modbus TCP

• ProfiNET

• Ethernet IP

Smart Card Options

• Pumping Smart Card

Other Accessories

• Remote HMI















(EMX3)

EMX3 Soft Starter: Features & Accessories











Features

Starting Functions

• XLR-8 adaptive acceleration

• Constant current start mode

• Current ramp start mode

• Kickstart

Stopping Functions

• XLR-8 adaptive deceleration

• TVR soft stop

• Brake mode

• Coast to stop

Protection

• Fully customisable protection

• Motor thermal model

• Motor thermistor input

• Phase sequence

• Undercurrent

• Instantaneous overcurrent

• Auxiliary trip input

• Heatsink overtemperature

• Excess start time

• Supply frequency

• Shorted SCR

• Power circuit

• Motor connection

• RS485 failure

• Motor overload

• Current imbalance

• Ground fault (optional)

Usability

• Large viewable screen, with real-language text.

• Status LEDs for immediate feedback.

• Start, stop, reset, local/remote push buttons.

• IP65 removable keypad.

• Unique wiring loom separates wires for easy install and allows access from top, left or bottom.

• Top and bottom cable retainers for tidier wiring.

• Small footprint and depth saves space.

Keypad

• Remote mounting option

• Status LEDs

• Easy to read screen

• Real language feedback

• Multi-language options

• Shortcut buttons

Additional features

• Starter communication timeout

• Network communication trip

• Auto detection of inline or inside delta power connection

• Programmable auto start/stop

• 24 VDC auxiliary power supply

• PT100 (RTD) input

• Real time clock with battery backup

• PowerThrough - enables the choice of continuous operation despite a power assembly failure. This allows production to continue while long-term remedial action can be taken.

• Forward and reverse jog function

• I/O expansion card (optional)

Accessories

Communication modules

The EMX3 supports network communication using Profibus, Profinet, DeviceNet, Ethernet/IP, Modbus RTU or Modbus TCP protocols, via easy-to-install communication interfaces.

Finger guards

Enhance personnel safety by preventing accidental contact with live terminals. The finger guard kit fits EMX3-0220B to EMX3-1000B and provides IP20 protection when used with cables 22 mm or greater.

Input/output card

Add extra inputs and outputs for advanced integration:

• 2 x inputs

• 3 x relay outputs

• 1 x analog input

• 1 x analog output

RTD and ground fault

• 6 x PT100 RTD inputs

• 1 x ground fault input

To use ground fault protection a 1000:1,  5 VA current transformer is also required.

PC Software

Using AuCom's custom designed WinMaster software you can control, monitor and program your EMX3 from your desktop computer.
