PSTX softstarter



The PSTX combines many years of research and product development with extensive knowledge of application specific requirements and needs. The PSTX is our latest advancement in motor control and protection and adds new functionality with increased reliability to any motor starting application.



Main benefits



Secure motor reliability

Improve installation efficiency

Increase application productivity



Main features



Three-phase controlled

Operational voltage: 208-690 V AC

Wide rated control supply voltage: 100-250 V, 50/60 Hz

Rated operational current: 30-570 A (inside-delta: 987 A)

Coated circuit boards

Torque control for excellent control of pumps.





PSE soft starter



Our PSE range is the perfect compromise between size and functionality. With torque control, it is the perfect option for smaller sized pump applications.







Keep your motor safe with built-in motor protections

Fast and easy set-up with illuminated, language-neutral display

Eliminate water hammering with torque control

Reduce energy losses with built-in bypass.



Main features



Rated operational current: 18 to 370 A

Operational voltage: 208–600 V AC

Control supply voltage: 100–250 V AC.





ACS850 – machinery drive

Flexibility and scalability to match your precise needs

You do the design and the ASC850 has the flexibility and scalability to meet your challenges. Scalable motor control lets you use a variety of motor types. The programming flexibility along with a wide range of options and safety features allows you to easily integrate the drive into your process.



The ACS850 is an ideal IP20 drive for both multi- and single axis machinery use.



Highlights



0.37 to 560 kW/0.5 to 700 hp

Bookshelf design saves space

Direct torque control (DTC) for premium motor control as standard

Safe torque off (STO) as standard

Controls different types of motors including permanent magnet and synchronous reluctance motors

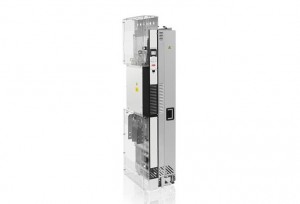

ACS880-04-single drive modules

Single drive modules for simplicity and compatibility in your cabinet assembly

Specifically designed for machine builders and systems integrators. You can build flexibility, simplicity into your own cabinet. Made as a bookshelf and a flat variant, they can easily be pushed inside the cabinet using a pedestal on wheels. All built on ABB’s common all-compatible drive architecture. Simplifying operation without limiting your possibilities.



Highlights



Power range 200 to 710 kW

Single drive modules for flexible and optimized cabinet assembly

IP00, IP20 enclosure classes

Direct torque control (DTC) as standard

Integrated safety including STO as standard

Intuitive control panel with USB port

EMC filter, choke and brake chopper

Supports a wide range of fieldbus protocols

Flexible I/O and encoder options



ACS880-07-cabinet-built single drives

All-compatible cabinet-built drives tailored to your needs

Built on ABB’s all-compatible drives architecture cabinet-built drives have a wide range of standard and optional features, saving installation space and time. Enjoy premium control of virtually any type of AC motor with direct torque control (DTC),including permanent magnet motors and synchronous reluctance motors. Solutions to many different applications are possible with flexible connectivity and an extensive range of options.



Highlights



Power range 45 to 2800 kW

Built on ABB’s common drives architecture

Compact design for custom made needs

IP22, IP42 and IP54 enclosure classes

Direct torque control (DTC) as standard

Integrated safety including STO as standard

Intuitive control panel with USB port

Choke as standard and EMC filter, brake chopper as options

Supports a wide range of fieldbus protocols

Flexible I/O and encoder options



ACS800 drive modules

Benefit from ABB’s advanced drive technology within your own cabinet design

ACS800 drive modules consist of two types – single drive modules that control one motor and multidrive modules that control several motors. As a system integrator and/or machine builder this includes the cabinet structure as well as the software features needed. A harmonic filtering choke is standard, with a wide selection of built-in options such as EMC filtering and different I/O and communication. In addition a selection of external accessories is also available. All these modules can be mounted side by side. Compact for optimized cabinet assembly and with regenerative supply for energy savings.



Highlights



Direct torque control (DTC) as standard

Enclosure classes from IP00 to IP55

EMC filter, choke and brake chopper

Supports a wide range of fieldbus protocols

Flexible I/O and encoder options



ACS880-01, wall-mounted single drives

Build your possibilities on compatibility and flexibility

Built on ABB’s all-compatible drives architecture you have unprecedented levels of compatibility, flexibility and ease of-use. Compact wall-mounted drives with all important features built-in the drive, saving installation space and time. Enjoy premium control of virtually any type of AC motor with direct torque control (DTC), including permanent magnet motors and synchronous reluctance motors. Flexibility is thanks to universal connectivity and a broad range of internal and external options.

Highlights



Power range 0.55 to 250 kW

Built on ABB’s common drives architecture

IP20, IP21 and IP55 enclosure classes

Direct torque control (DTC) as standard

Integrated safety including STO as standard

Intuitive control panel with USB port

EMC filter, choke and brake chopper built-in

Supports a wide range of fieldbus protocols, I/O and encoder options

Flexible I/O and encoder options

Marine type approved design



ACQ580

ACQ580 - drives for water and wastewater

Secure energy efficient flow of water and wastewater in your pumping solution

The all-compatible ACQ580 drives for water and wastewater simplify your pumping processes and motor control while ensuring effortless energy efficiency. This robust and compact wall-mounted and cabinet-built drive has built-in pump application functionalities such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, and has quick ramps and a solution for keeping the impeller of the pump clean. Usability is enhanced with the intuitive Hand-Off-Auto control panel and the PC tool Drive composer. The built-in energy calculator visualizes the energy savings achieved with the usage of the drive. The drive controls virtually any kind of motor including an IE4 synchronous reluctance motor. Connectivity is supported by a wide range of fieldbus protocols.





0.75 to 500 kW, 380 to 480 V

IP00, IP20, IP21, IP42, IP54 and IP55 enclosure classes allows installation on walls, into cabinets and as free standing drive modules

Built-in energy saving calulator and pump functionalities secure optimal pump operation

Supports IE4 synchronous reluctance, asynchronous induction and permanent magnet motors

Connects to a wide range of water and wastewater control systems

Our local partners provide wide availability of service and support
